OUR PRODUCTS & SERVICES IN THE OIL AND GAS INDUSTRY

We offer a wide range of services, including thermal calculation, mechanical design, finite element analysis, manufacturing, and installation. Our experience in the Oil and Gas industry is well-established and continues to grow. We use advanced software to simulate the thermal behavior of your system and provide you with accurate results. Our mechanical design services are efficient, reliable, and cost-effective. Our finite element analysis services help you optimize your designs and reduce the risk of failure. Our manufacturing services meet the highest quality standards. Our installation services are carried out by experienced professionals who ensure that your systems are installed correctly and efficiently. We are committed to excellence and strive to exceed your expectations every step of the way.

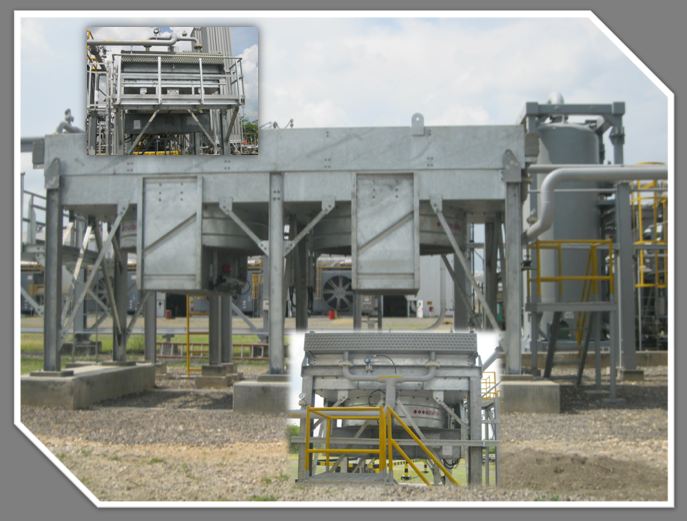

Crude Oil Cooler HE-1551 for Early Production Facility EPF-3 Plant Expansion, Banyu Urip, Cepu, Mobil Cepu Ltd

Specification Summary

5.06 MMBtu/hr for cooling of 12571 BOPD Crude Oil from 217F to 145F
Forced draft, ASME U-Stamp & National Board
Moore Fans Class 10000 S30 VE Manual HD EC RH diameter 8 FT 6 blades
WEG NEMA Motor Type 0940M, 20 hp (15kW)/ 3 phase/ 380VAC/ 4 pole/ 1460 rpm/ 50 hz, NEMA Design B, Insulation Class F, Class 1 Div. 1, TEFC, SF1.15, 284T Frame V6R(D)
The Unit Cooler is equipped with MCC F2100 series Eaton Cutle Hammer 20hp with VFD 9000X AF Drive Series Model SVX020A1-4A1B1, Vibration Switch Murphy VS2-EX

Code Compliance

ASME VIII Div. 1 – ASME BPV Code Rules for Construction of Pressure Vessels
API Std 661 – Air-Cooled Heat Exchangers for General Refinery Service
NACE MR0175 – Standard Material Requirements Sulfide Stress Cracking Resistant Metallic Materials for Oilfield Equipment
AWS D1.1 – Structural Welding Code Steel

We did

Engineering works, such-as Thermal Design, Mechanical Design, Structural Skid Analysis, Fan Rating & Drive Selection, 3-D Modeling, Construction Drawings, Electrical &
Instrument Drawing
Fabrication, testing & inspection, coating of header box, bundle and support structural
Installation of motors, belt drives and fans, including belt alignment
Installation of Electrical & Instrument
Assembly & Install MCC F2100 series Eaton Cutler Hammer 20 HP
Performance test at shop & site

30 MMSCFD TEG Dehydration Natural Gas Plant, Bangladesh Petroleum Exploration & Production Co. Ltd.

Customer: Consortium of Shengli Engineering & Consulting Co. Ltd. And Zicom Equipment Pte. Ltd.

Joint Operation of PT. Transalindo Eka Persada and PT. Heat Transfer Solutions Indonesia to design and fabricate:

TEG Contactor Skid Package
Glycol Dehydration Skid Package

Code Compliance

ASME VIII Div. 1 – ASME BPV Code Rules for Construction of Pressure Vessels
TEMA – Standards of the Tubular Exchanger Manufacturers Association
API Std 660 – Shell-and-tube Heat Exchangers
API Std 661 – Air-Cooled Heat Exchangers for General Refinery Service
API Std 662 Part 2 - Plate Heat Exchangers for General Refinery Services Part 2 - Brazed Alumninum Plate-fin Heat Exchangers
ASME B31.3 – Process Piping
AWS D1.1 – Structural Welding Code Steel

We did

Engineering works, such-as Thermal Design, Mechanical Design, Structuralid Analysis, 3-D Modeling, Isometric Drawings, Construction Drawings
Design and Drawings both skids including piping
Supply Glycol/ Glycol Heat Exchanger (Brazed PHE)
Design and supply Gas/ Glycol Exchanger (STHE)
Design and supply Glycol Reboiler c/w Burner Management System
Design and supply Still Overhead Gas Cooler (ACHE)
Design and supply Glycol Reflux Condenser (Coil Type)
Design and supply Glycol Air Cooler (ACHE)

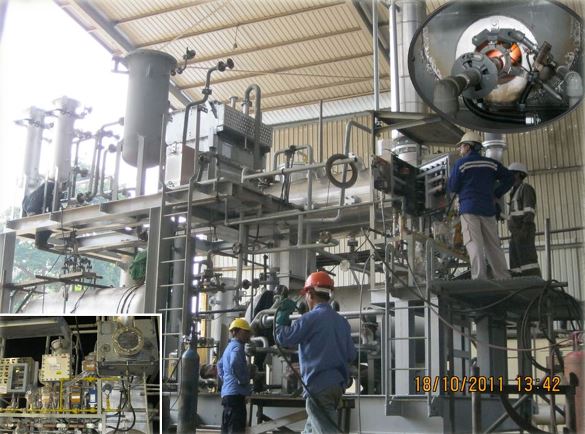

FAT for Air Coolers and Burner Management System

WFT WIRA 1 & 2 WELL TEST BARGES

Customer: PT. Weatherford Indonesia

Specification Summary

Two (2) units Vent Gas/ Closed Drain Vessel, V-501 & V-801, 1219 ID x 3048 T/T

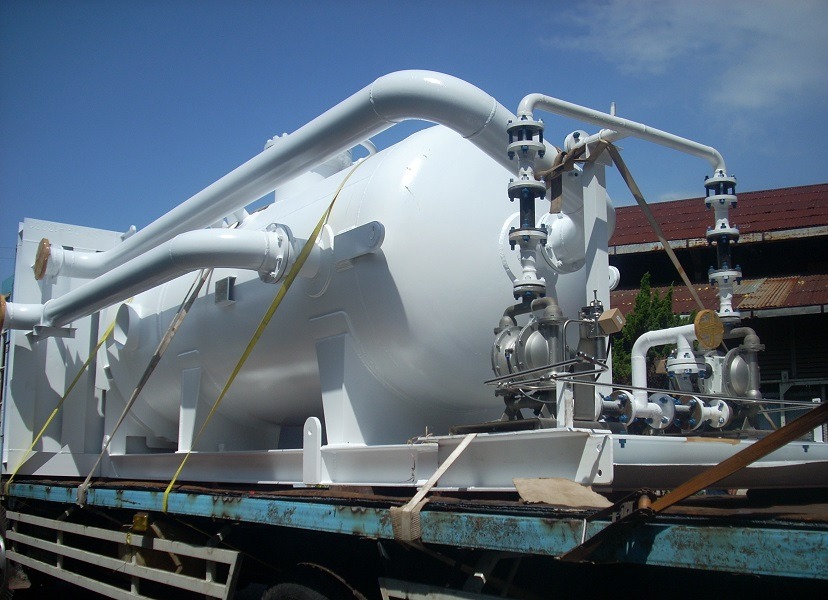

Two (2) units Flare Gas Scrubber, V-401-W1 & V-401-W2, 1676 ID x 3048 T/T
One (1) unit 100 BBL Dual Compartment Surge Tank, 2438 ID x 3048 T/T
Material Specification Plain carbon steel SA516 Gr. 70 and NACE MR 0175

Code Compliance

ASME VIII Div. 1 – ASME BPV Code Rules for Construction of Pressure Vessels
ASME B31.3 – Process Piping
AWS D1.1 – Structural Welding Code Steel

We did

Engineering works, such-as Mechanical Calculations, Construction Drawings, Structural Skid Drawings and Isometric Drawings
Fabrication, testing & inspection, coating of Pressure Vessels, Structural Skids & Pipings
Volumetric Calibration of Surge Tank
MIGAS Certifications and Lloyd's Register
Delivery at site
